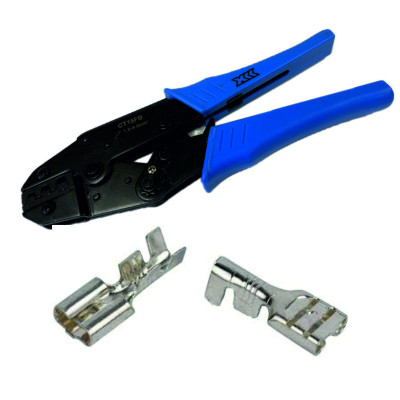

Hand held manually operated 3 jaw crimping tool with ratchet mechanism for complete
controlled crimp cycle. For use with F-Crimp connectors.

To suit cable sizes 1mm² to 1.5mm², 2.5mm², 4mm² to 6mm².
Tab sizes male or female, 2.8mm, 4.8mm and 6.3mm.

Automatically crimps both the conductor and insulation grip at the same time.

• High precision cast jaw set for optimum compression.
• Ratchet control mechanism ensures precise controlled crimping cycle.
• Emergency release lever for detachment of ratchet control during crimp cycle.
• Automatic opening of crimp tool on completion of crimp cycle.
• Calibration / load adjustment cog.
• Ergonomically designed moulded plastic handles for reduction of operator fatigue.
